NLAS4157DFT2G
Manufacturer:
On Semiconductor
Mfr.Part #:
NLAS4157DFT2G
Datasheet:
Description:

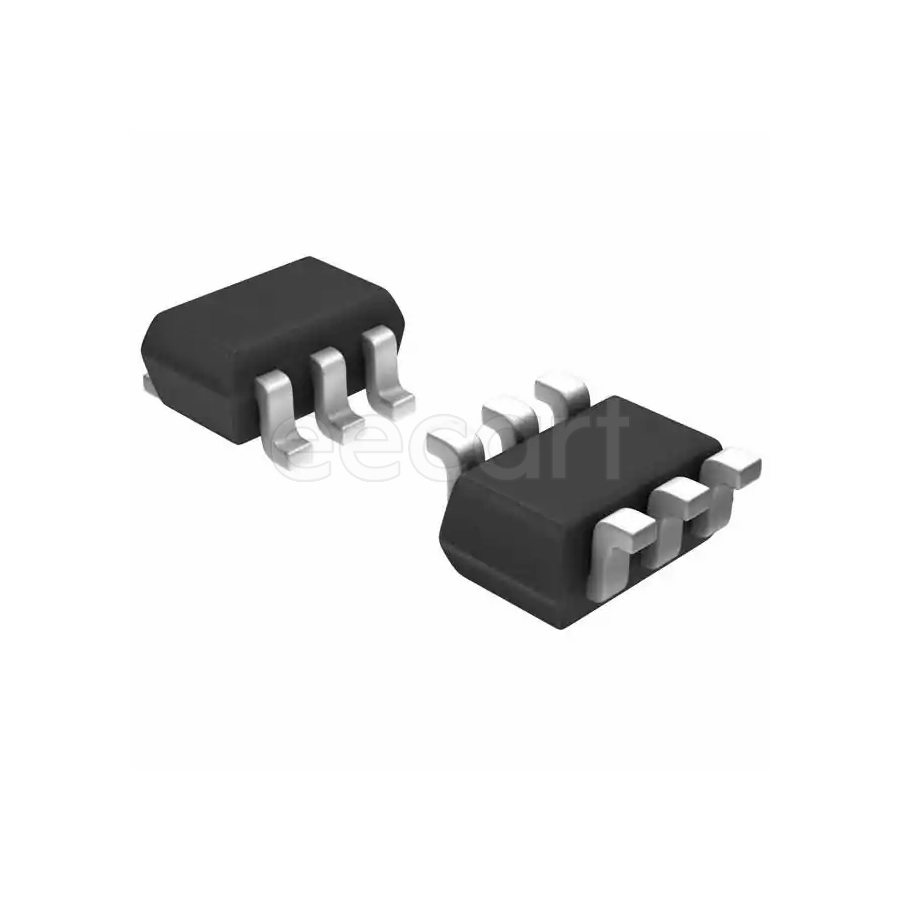

Analogue Switch ICs SC-88 SMD/SMT Number of Channels:1 1.15 Ω 30 ns 20 ns
| Parameter | Value |
|---|---|
| Length | 2.2 mm |
| Width | 1.35 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Resistance | 4 Ω |
| Height | 1 mm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Circuits | 1 |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.65 V |
| Number of Channels | 1 |
| Number of Bits | 1 |
| Turn-On Delay Time | 30 ns |
| Turn-Off Delay Time | 20 ns |
| Operating Supply Current | 500 nA |
| Propagation Delay | |
| High Level Output Current | 300 mA |
| Low Level Output Current | 300 mA |
| Number of Inputs | 1 |
| Supply Type | Single |
| Throw Configuration | SPDT |
| Number of Outputs | 2 |
| Nominal Supply Current | 500 mA |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| On Resistance (RON) | 1.15 Ω |
| Logic Family | |
| Configuration | 1 x SPDT |
